Ecoman Enviro Solutions Pvt. Ltd is a leading company in the field of Solid Waste Managementand advanced technology of composting. Ecoman offers an unique and special product which is called ‘FOODIE’.

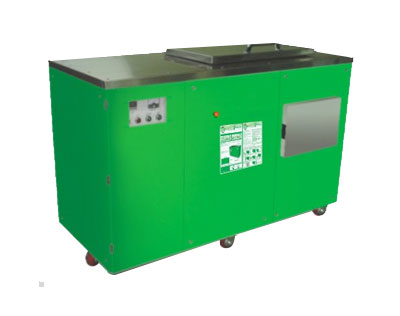

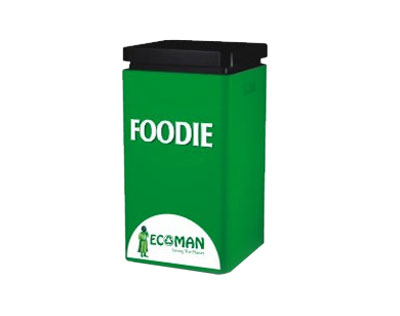

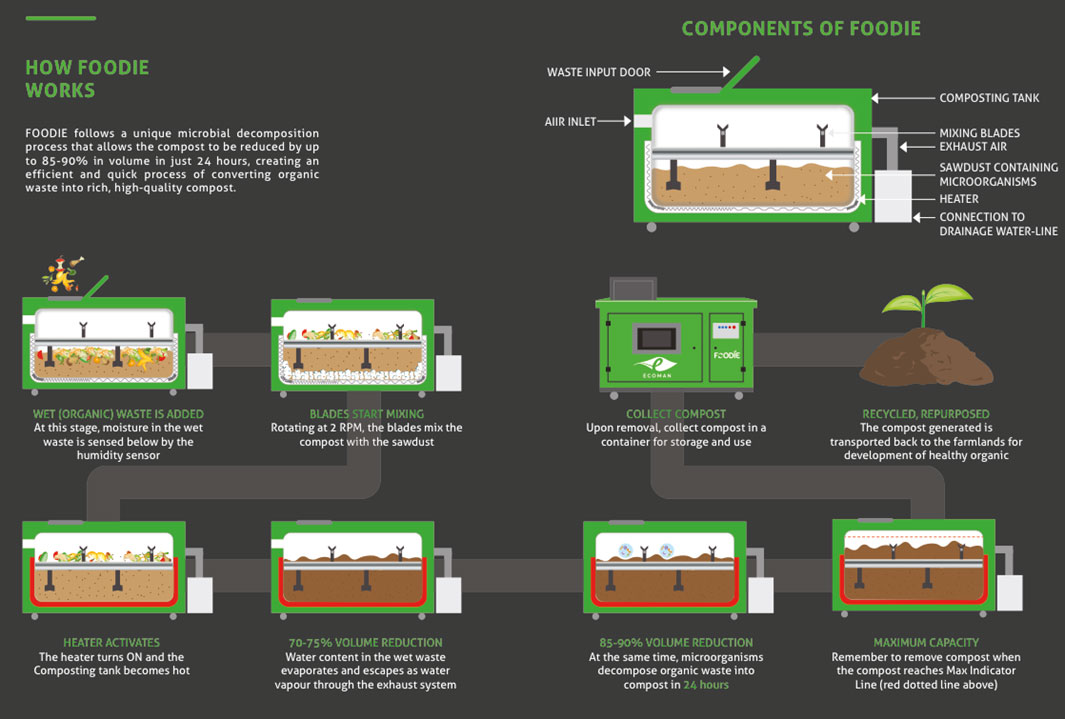

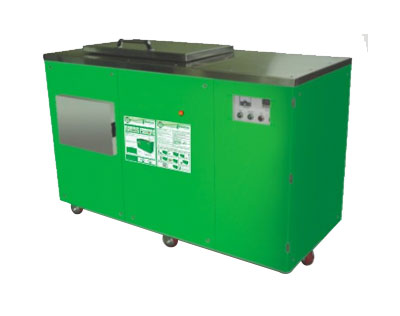

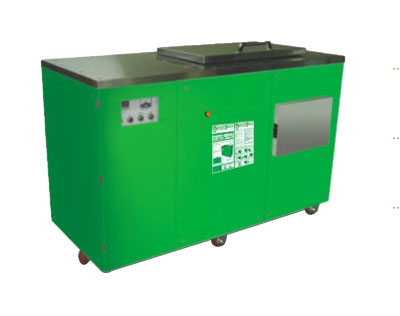

Foodie is fully automatic and highly compact composting machine, which processes all kind of organic waste into compost within 24 hours. Every Foodie purchased by the customer, is a contribution toward ‘Clean and Green Planet’.
FOODIE satisfies the 3 R Principle :
Technical Specifications F-25 - F-1250 |
|||||||||||
MODEL |
Dimentions (ft) |
CAPACITY (Kg / Day) |
OVERALL SPACE REQUIRED (Sq ft) |
Weight (kg) |
MOTOR RATING |
BLOWER RATING |
HEATER RATING |
Overall POWER RATING |
MCB / MCCB |
MAIN UPPLY CABLE SIZE |
POWER CONSUMPTION |
Units / Day |
|||||||||||
F-03 | - | - | - | - | - | - | - | - | - | - | - |
F-25 |
5.5X3X3 |
25 |
130 |
350 |
0.18 KW |
45 W |
1.2 KW |
1.5 KW |
6 AMP, 4 POLE |
CU - 1.5 SQ.MM, 4 CORE |
12-16 UNITS |
F-75 |
7X4X4 |
75 |
130 |
700 |
0.37 KW |
90 W |
2.8 KW |
3.5 KW |
10 AMP, 4 POLE |
CU - 2.5 SQ.MM ,4 CORE |
20-30 UNITS |
F-125 |
7.5X4.5X4.5 |
125 |
200 |
1000 |
0.75 KW |
120 W |
4.4 KW |
5.5 KW |
16 AMP, 4 POLE |
CU - 4 SQ.MM, 4 CORE |
40-50 UNITS |
F-250 |
9X5.5X5.5 |
250 |
250 |
1400 |
1.5 KW |
0.37 KW |
9 KW |
11 KW |
25 AMP, 4 POLE |
CU - 6 SQ.MM, 4 CORE |
80-100 UNITS |
F-500 |
12X6.5X7.5 |
500 |
450 |
2600 |
4 KW |
0.37 KW |
12 KW |
16 KW |
32 AMP, 4 POLE |
CU - 10 SQ.MM, 4 CORE |
110-130 UNITS |
F-700 |
13.5X7.5X8.5 |
700 |
520 |
4000 |
5.5 KW |
0.75 KW |
21 KW |
27.5 KW |
63 AMP, 4 POLE |
CU - 10 SQ.MM, 4 CORE |
150-170 UNITS |
F-1250 |
16X8X9.5 |
1250 |
630 |
6000 |
7.5 KW |
1.5 KW |
32 KW |
41 KW |
80-100 AMP, 4 POLE |
CU - 16 SQ.MM, 4 CORE |
200-230 UNITS |
